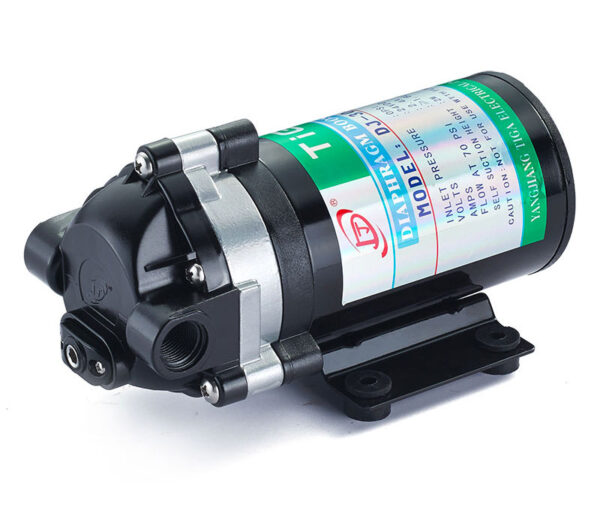

DJ-200 Series of Self Priming Pump

Mounting Base::

Metal base with shock-proof rubber gasket

Characteristics::

Strong self-priming ability, Can quickly exhaust the air in the pipeline; Low power consumption and high efficiency motor; Stable outlet pressure; Low noise, Low vibration

Applications::

Suitable for areas with no pipe pressure and low pipe pressure in mountainous areas; Suitable for reverse osmosis pure water machine, spray device, water treatment equipment, foundry measurement and sanitation, environmental protection, printing industry

Description
MODEL VOLTAGE PORTS INLET PRESSURE WORK PRESSURE WATER FLOW @70PSI WORK CURRENT RATED CURRENT SELF PRIMING DIMENSION WEIGHT
DJ-200-200 24 VDC 3/8″ NPT 0 ~ 70PSI > 70 PSI ≧ 1.3 LPM ≦ 1.7 A 1.8 A 2 M 195 x 101 x 100 (MM) 2.2 KGs
DJ-200-300 24 VDC 3/8″ NPT 0 ~ 70PSI > 70 PSI ≧ 2.0 LPM ≦ 2.1 A ?2.2 A 2 M 195 x 101 x 100 (MM) 2.3 KGs
DJ-200-400 24 VDC 3/8″ NPT 0 ~ 70PSI > 70 PSI ≧ 2.6 LPM ≦ 2.5 A ?2.6 A 2 M 195 x 101 x 100 (MM) 2.3 KGs

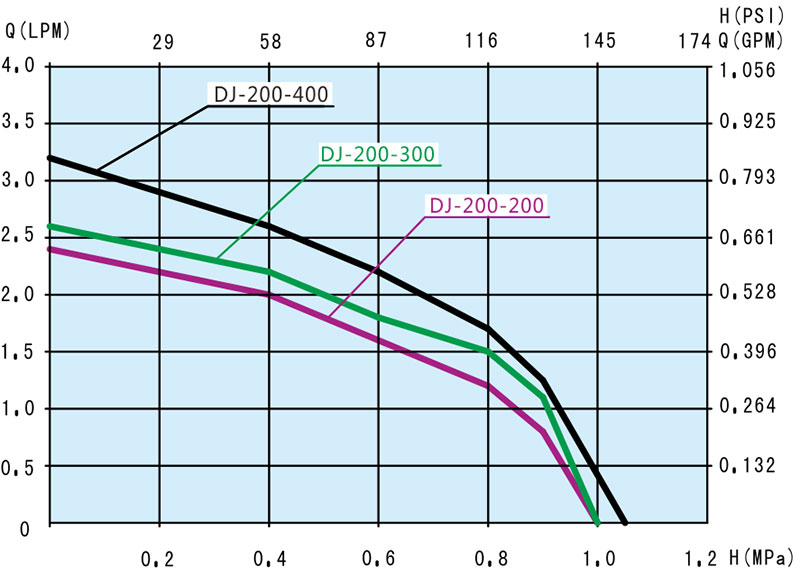

Characteristic Performance Curve

DJ‐200自吸增压一体泵系列

Installation Dimensions

DJ‐200自吸增压一体泵系列
Additional information
Application of Machine

Home Devices
Motor Type

Brushless Motor
Certifications

CSA
Minimum Order Quantity

200 PCs
OEM | ODM | Customize Service

Acceptable
Packaging & Delivery

Carton + Foam Box
Payment Method

LC
