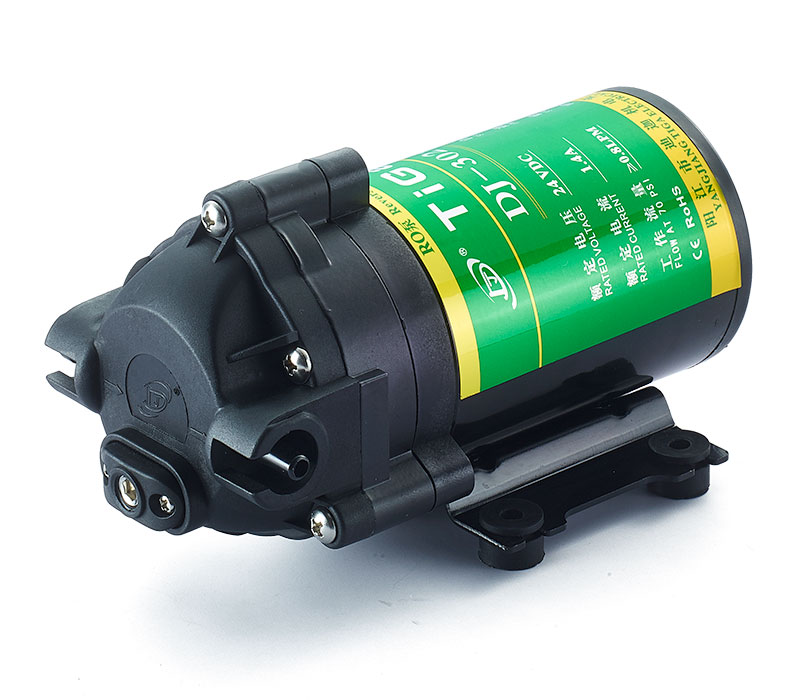

DJ-302 Series of Self Priming Pump
Mounting Base::
Metal base with shock-proof rubber gasket
Characteristics::
Strong self-priming ability, Can quickly exhaust the air in the pipeline; Low power consumption and high efficiency motor; Stable outlet pressure; Low noise, Low vibration
Applications::
Suitable for areas with no pipe pressure and low pipe pressure in mountainous areas; Suitable for reverse osmosis pure water machine, spray device, water treatment equipment, foundry measurement and sanitation, environmental protection, printing industry
Description
| MODEL | VOLTAGE | PORTS | INLET PRESSURE | WORK PRESSURE | WATER FLOW @70PSI | WORK CURRENT | RATED CURRENT | SELF PRIMING | DIMENSION | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|
| DJ-302-50 | 24 VDC | 3/8″ NPT or 1/4″ Fast Connector | 0 ~ 70PSI | > 70 PSI | ≧ 0.6 LPM | ≦ 1.2 A | 1.3 A | 2 M | 179 x 101 x 100 (MM) | 1.9 KGs |
| DJ-302-75 | 24 VDC | 3/8″ NPT or 1/4″ Fast Connector | 0 ~ 70PSI | > 70 PSI | ≧ 0.8 LPM | ≦ 1.3 A | 1.4 A | 2 M | 179 x 101 x 100 (MM) | 1.9 KGs |
| DJ-302-100 | 24 VDC | 3/8″ NPT or 1/4″ Fast Connector | 0 ~ 70PSI | > 70 PSI | ≧ 0.9 LPM | ≦ 1.5 A | 1.6 A | 2 M | 179 x 101 x 100 (MM) | 2.0 KGs |
Characteristic Performance Curve
Installation Dimensions
Additional information
| Application of Machine |
Home Devices |
|---|---|
| Motor Type |
RO Pumps |
| Certifications |
CSA |
| Minimum Order Quantity |
200 PCs |
| OEM | ODM | Customize Service |
Acceptable |
| Packaging & Delivery |
Carton + Foam Box |
| Payment Method |
LC |
