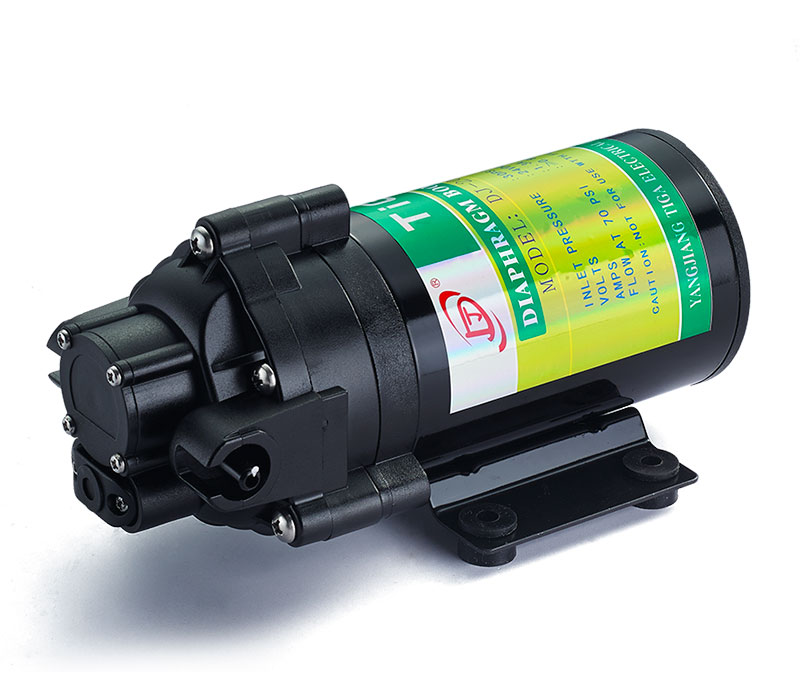

DJ‐310自吸增压一体智能泵系列

DJ‐310 Automatic Series of Self Priming Pump

Mounting Base::

Metal base with shock-proof rubber gasket

Characteristics::

Strong self-priming ability, Can quickly exhaust the air in the pipeline; Low power consumption and high efficiency motor; Stable outlet pressure; Low noise, Low vibration

Applications::

Suitable for areas with no pipe pressure and low pipe pressure in mountainous areas; Suitable for reverse osmosis pure water machine, spray device, water treatment equipment, foundry measurement and sanitation, environmental protection, printing industry

MODEL	VOLTAGE	PORTS	INLET PRESSURE	WORK PRESSURE	WATER FLOW @70PSI	WORK CURRENT	RATED CURRENT	SELF PRIMING	DIMENSION	WEIGHT
DJ-310-50	24 VDC	3/8″ NPT or 1/4″ Fast Connector	0 ~ 70PSI	> 70 PSI	≧ 0.6 LPM	≦ 1.3 A	1.4 A	2 M	202 x 101 x 100 (MM)	2.1 KGs
DJ-310-75	24 VDC	3/8″ NPT or 1/4″ Fast Connector	0 ~ 70PSI	> 70 PSI	≧ 0.8 LPM	≦ 1.4 A	1.5 A	2 M	202 x 101 x 100 (MM)	2.1 KGs
DJ-310-100	24 VDC	3/8″ NPT or 1/4″ Fast Connector	0 ~ 70PSI	> 70 PSI	≧ 0.9 LPM	≦ 1.6 A	1.7 A	2 M	202 x 101 x 100 (MM)	2.2 KGs

MODEL

VOLTAGE

PORTS

INLET PRESSURE

WORK PRESSURE

WATER FLOW @70PSI

WORK CURRENT

RATED CURRENT

SELF PRIMING

DIMENSION

WEIGHT

DJ-310-50

24 VDC

3/8″ NPT or 1/4″ Fast Connector

0 ~ 70PSI

> 70 PSI

≧ 0.6 LPM

≦ 1.3 A

1.4 A

2 M

202 x 101 x 100 (MM)

2.1 KGs

DJ-310-75

24 VDC

3/8″ NPT or 1/4″ Fast Connector

0 ~ 70PSI

> 70 PSI

≧ 0.8 LPM

≦ 1.4 A

1.5 A

2 M

202 x 101 x 100 (MM)

2.1 KGs

DJ-310-100

24 VDC

3/8″ NPT or 1/4″ Fast Connector

0 ~ 70PSI

> 70 PSI

≧ 0.9 LPM

≦ 1.6 A

1.7 A

2 M

202 x 101 x 100 (MM)

2.2 KGs

Application of Machine	Business Devices , Home Devices
Motor Type	RO Pumps
Certifications	CE , CSA , ISO 9001:2008
Minimum Order Quantity	200 PCs
Packaging & Delivery	Carton + Foam Box
Payment Method	LC , TT \| Wire , West Union

DJ‐310 Automatic Series of Self Priming Pump

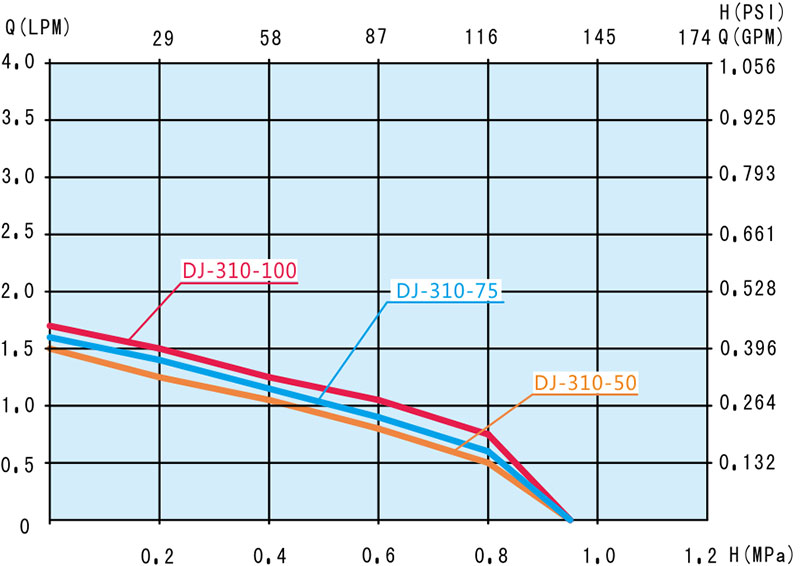

Characteristic Performance Curve

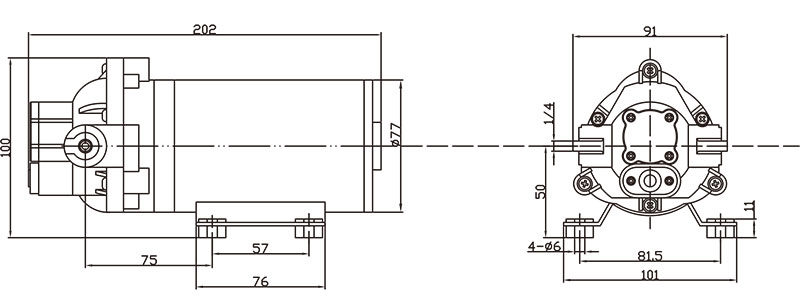

Installation Dimensions
