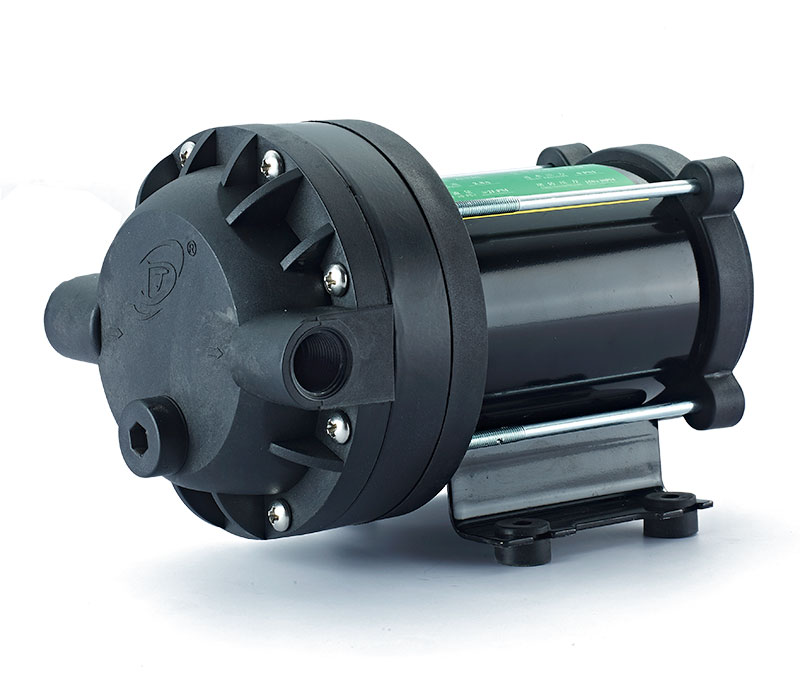

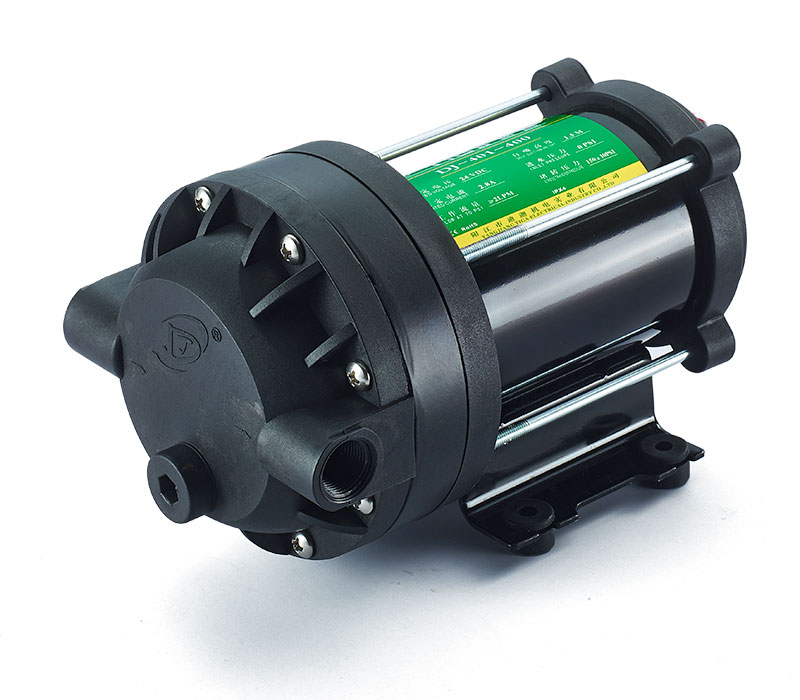

DJ-401自吸增压一体泵系列

DJ-401 Series of Self Priming Pump

Mounting Base::

Metal base with shock-proof rubber gasket

Characteristics::

Strong self-priming ability, Can quickly exhaust the air in the pipeline; Low power consumption and high efficiency motor; Stable outlet pressure; Low noise, Low vibration

Applications::

Suitable for areas with no pipe pressure and low pipe pressure in mountainous areas; Suitable for reverse osmosis pure water machine, spray device, water treatment equipment, foundry measurement and sanitation, environmental protection, printing industry

MODEL	VOLTAGE	PORTS	INLET PRESSURE	WORK PRESSURE	WATER FLOW @70PSI	WORK CURRENT	RATED CURRENT	SELF PRIMING	DIMENSION	WEIGHT
DJ-401-400	24 VDC	3/8″ NPT	0 ~ 70PSI	> 70 PSI	≧ 2.6 LPM	≦ 2.7 A	2.8 A	1.5 M	196 x 125 x 119 (MM)	2.6 KGs
DJ-401-600	24 VDC	3/8″ NPT	0 ~ 70PSI	> 70 PSI	≧ 4.0 LPM	≦ 3.1 A	3.2 A	1.5 M	196 x 125 x 119 (MM)	2.8 KGs
DJ-401-800	24 VDC	3/8″ NPT	0 ~ 70PSI	> 70 PSI	≧ 5.2 LPM	≦ 3.9 A	4.0 A	1.5 M	196 x 125 x 119 (MM)	3.0 KGs

MODEL

VOLTAGE

PORTS

INLET PRESSURE

WORK PRESSURE

WATER FLOW @70PSI

WORK CURRENT

RATED CURRENT

SELF PRIMING

DIMENSION

WEIGHT

DJ-401-400

24 VDC

3/8″ NPT

0 ~ 70PSI

> 70 PSI

≧ 2.6 LPM

≦ 2.7 A

2.8 A

1.5 M

196 x 125 x 119 (MM)

2.6 KGs

DJ-401-600

24 VDC

3/8″ NPT

0 ~ 70PSI

> 70 PSI

≧ 4.0 LPM

≦ 3.1 A

3.2 A

1.5 M

196 x 125 x 119 (MM)

2.8 KGs

DJ-401-800

24 VDC

3/8″ NPT

0 ~ 70PSI

> 70 PSI

≧ 5.2 LPM

≦ 3.9 A

4.0 A

1.5 M

196 x 125 x 119 (MM)

3.0 KGs

Application of Machine	Home Devices
Motor Type	RO Pumps
Certifications	CSA
Minimum Order Quantity	200 PCs
OEM \| ODM \| Customize Service	Acceptable
Packaging & Delivery	Carton + Foam Box
Payment Method	LC

DJ-401 Series of Self Priming Pump

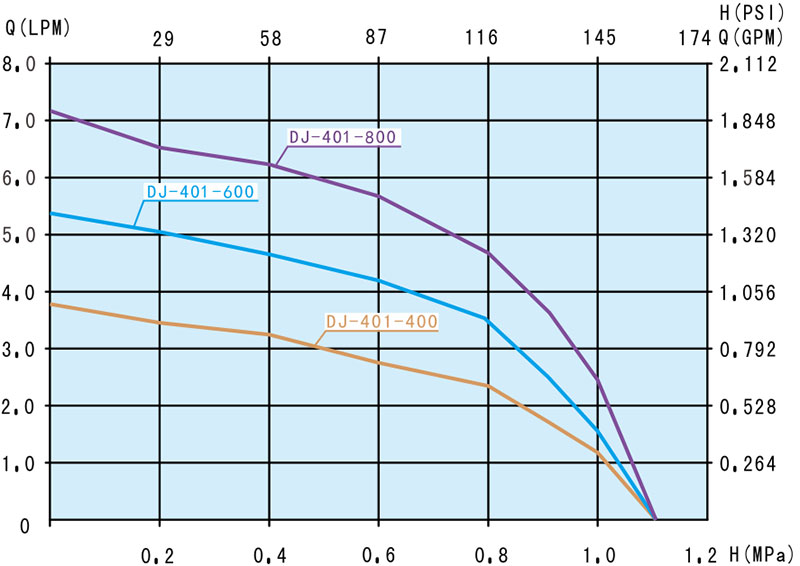

Characteristic Performance Curve

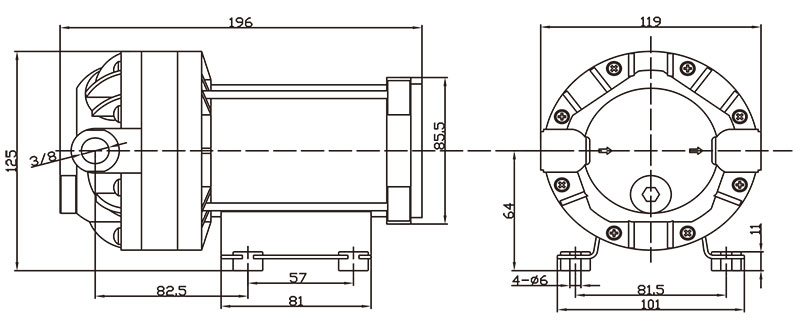

Installation Dimensions
